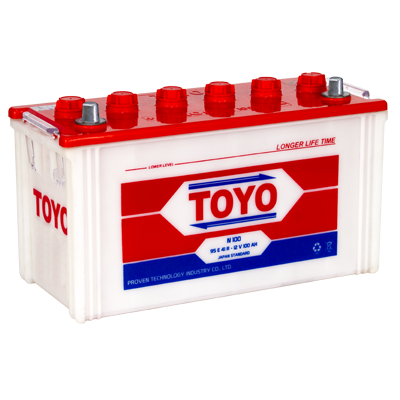

| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 100 Ah | |
| Dimension | Lenght | 406 mm |
| Width | 174 mm | |
| Container Height | 210 mm | |
| Total Height (With Terminal) | 235 mm | |
| Weight (approximate) | 16.5 Kg | |
| Acid | 1.28 g/cm3 (25oC) | |
| Acid VOL | 7.5 Liter | |
| Terminal Design | T2 | |
| Cell Layout | 0/1 | |
| Hold Down | Not Available | |
| Case | PP – Natural | |
| Cover | PP – Red | |
| Handle | PC – Clear | |
—–
| Terminal Design | Cell Layout | ||
|---|---|---|---|
| Type | ØD |  |
|
| Positive | Negative | ||
| T2 | 19.5°-0.3 | 17.9° -0.3 | |
 |
|||
