| Physical Specification | ||
|---|---|---|
| Nominal Voltage | 12 V | |
| Nominal Capacity (20 Hour Rate) | 15 Ah | |

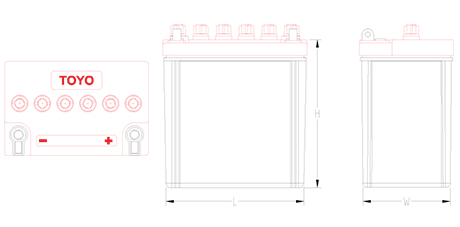

| Dimension | Length | 185 mm |
| Width | 125 mm | |
| Container Height | 165 mm | |
| Total Height (With Terminal) | 178 mm | |
| Weight (approximate) | 4.1 Kg | |
| Acid | 1.26 g/cm3 (25oC) | |
| Acid VOL | 2.0 liter | |
| Terminal Design | G | |
| Cell Layout | 0/1 | |
| Hold Down | Not Available | |
| Case | PP – Natural | |
| Cover | PP – Red | |
| Handle | Not Available | |
—
| Terminal Design | Cell Layout | |
| Type | G |  |
 |
||
| Dimensions (mm) | |||
|---|---|---|---|
| Length | Width | Height | T.Height |
| 185 | 125 | 165 | 178 |
 |
|||
| Electrical Specification | |
|---|---|

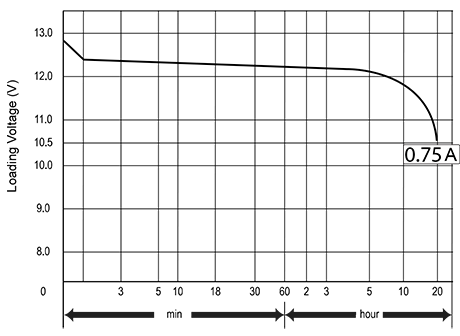

| Rated Capacity (20 Hour Rate @ 0.75 A) | 15 Ah |
| Cold Cranking Performance @ 0º F (-18º C) | 120 A |
